| Minimum Order Quantity : | 200meters | Packaging Details : | Wooden drum. iron-wooden drum |
|---|---|---|---|
| Delivery Time : | 20 days | Payment Terms : | L/C, T/T |
| Place of Origin: | Henan | Brand Name: | CN CABLE |
|---|---|---|---|
| Certification: | IEC | Model Number: | H05SJ-K H05SS-K |
|
Detail Information |
|||
| Conductor: | Flexible Bare Copper Class 5 According To UNE EN 60228 | Insulation: | Silicone Type EI 2 According To UNE EN 50363-1 |
|---|---|---|---|
| Reinforcement: | Fiberglass Braid | Impregnation: | Acrylic Varnish |
| Color: | Multi Colors Are Available | ||
| Highlight: | Heat Resistant Silicone Insulated Cables,Single Core Silicone Insulated Cables,Acrylic Varnish Silicone Insulated Cables |
||
Product Description

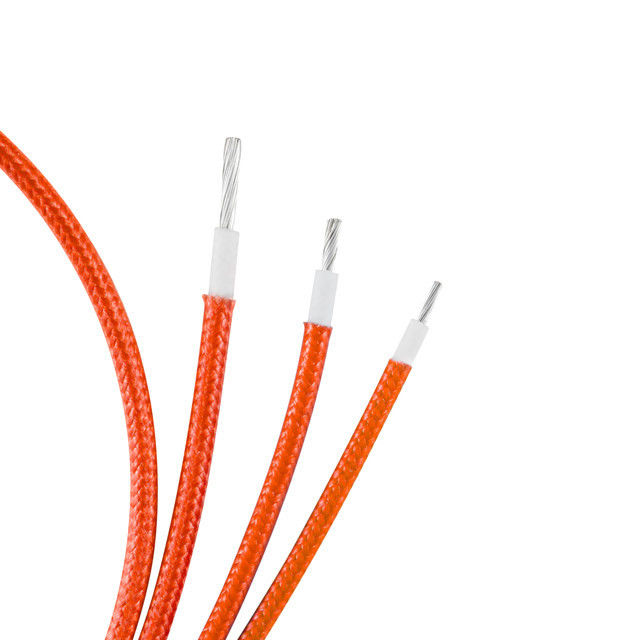

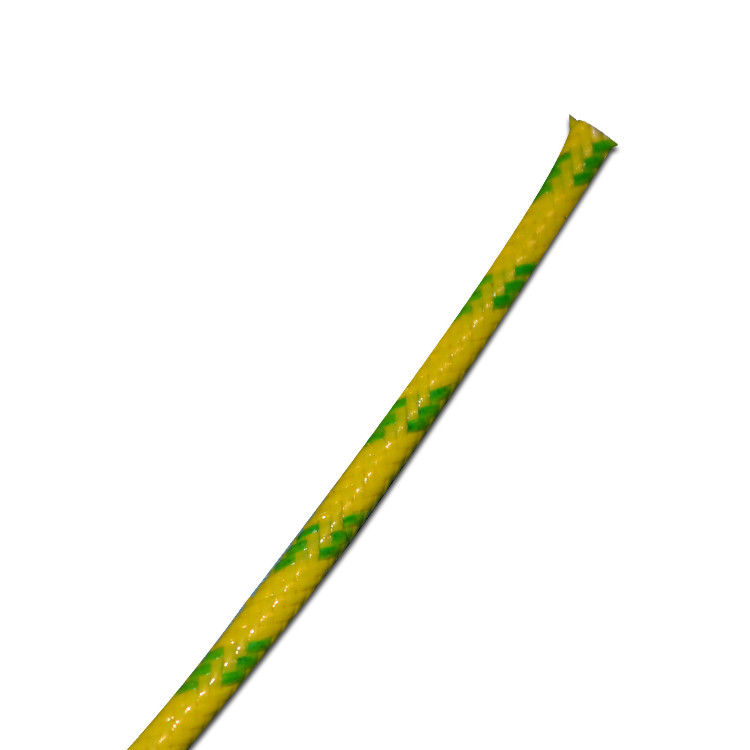

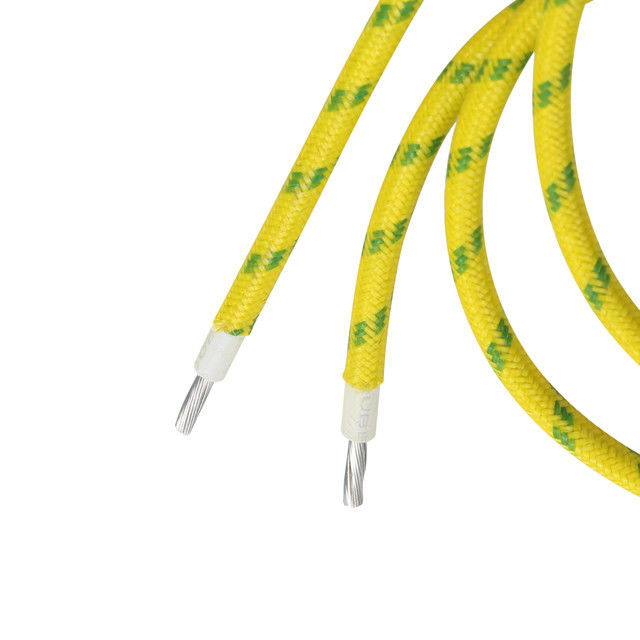

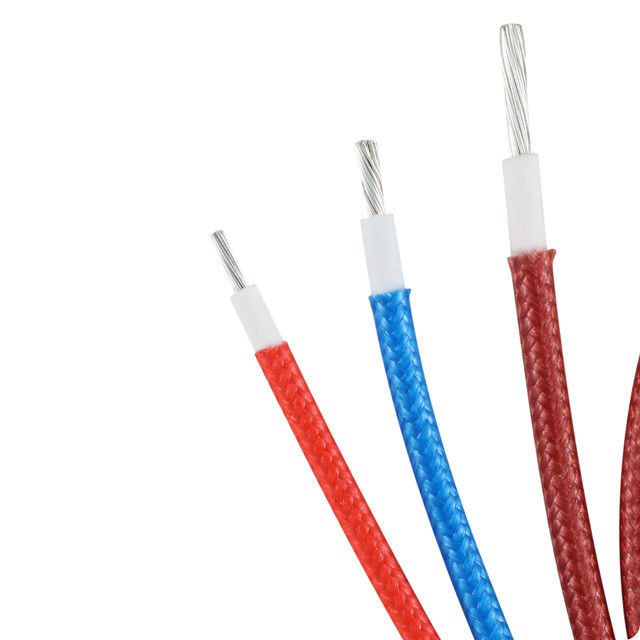

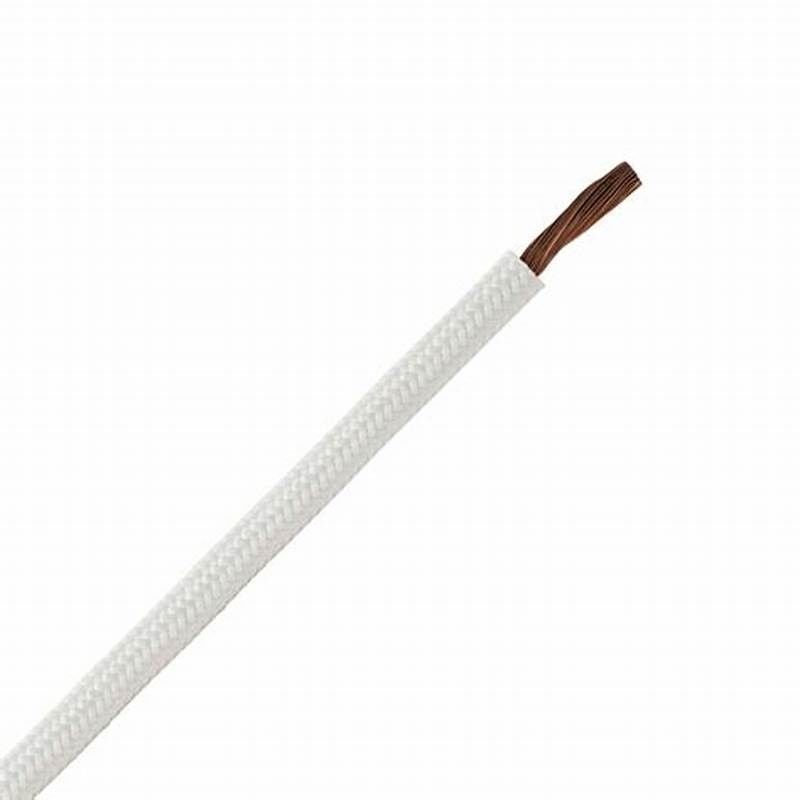

H05SJ-K H05SS-K 300/500 V Single Core Heat-resistant Silicone-insulated Cables with Mechanical Protection
APPLICATION
These cables are suitable for luminaire wiring and can be processed reliably and without problems. They are used at high ambient temperatures and for ambient air temperature between -60° C and +180° C in dry locations.
They are suitable for lighting fittings and equipment, as internal wiring in switchgear and distribution boards.
APPLICABLE STANDARD
EN 50525-2-41
CABLE CONSTRUCTION
Conductor: Flexible bare copper class 5 according to UNE EN 60228
Insulation: Silicone type EI 2 according to UNE EN 50363-1
Reinforcement: Fiberglass braid
Impregnation: White acrylic varnish
TECHNICAL DATA
Operating voltage: 300 / 500 V
Test voltage: 2.000 V
Operating temperature: from -60 to 180 ºC (up to 230 ºC)
Packing Material: Coil, Box, Pallet, Drum
| Section (sq.mm.) | Outer aprox. (mm.) | Weight (kg/km) | Resistance at 20ºC (Ω/km) |
| 1×0,5 | 2,6 | 8,6 | 39,0 |
| 1×0,75 | 2,9 | 10,3 | 26,0 |
| 1×1 | 3,0 | 13,2 | 19,5 |
| 1×1,5 | 3,5 | 19,0 | 13,3 |
| 1×2,5 | 4,1 | 31,2 | 7,98 |
| 1×4 | 4,9 | 44,5 | 4,95 |
| 1×6 | 5,9 | 61,8 | 3,30 |
| 1×10 | 7,6 | 108,3 | 1,91 |
| 1×16 | 9,2 | 167,1 | 1,21 |
| 1×25 | 11,3 | 216,0 | 0,78 |
| 1×35 | 12,6 | 367,8 | 0,554 |
| 1×50 | 15,1 | 510,0 | 0,386 |
| 1×70 | 17,2 | 775,4 | 0,272 |
