5kv Airport Airfield MV Power Cable Copper Conductor PVC jacket
Contact Person : Andrea
Phone Number : 0086-371-60547601
whatsapp : +8613598873045
| Minimum Order Quantity : | 1000meters | Packaging Details : | wooden drum. iron-wooden drum |
|---|---|---|---|
| Delivery Time : | 20 days | Payment Terms : | L/C, T/T |
| Place of Origin: | Henan | Brand Name: | CN CABLE |
|---|---|---|---|
| Certification: | IEC | Model Number: | MV CABLE |
|
Detail Information |
|||
| Conductor: | Copper Conductor | Insulation: | XLPE |
|---|---|---|---|
| Screen: | Copper Tape | Sheath: | PE |
| Color: | Purple Or Black | ||
| Highlight: | Airfield MV Cable,5kv Airfield MV Cable,5kv Airport MV Cable |
||
Product Description
5kv Airport/Airfield Cables Cable Cu Purple/Black
Application:
Airfield Lighting Equipment Primary cable for the series circuit connecting the Constant Current Regulators and the isolating transformers, and between the isolating transformers. This cable can be buried providing there is an extra mechanical protection.
Applicable Standard:FAA L-824 Type C

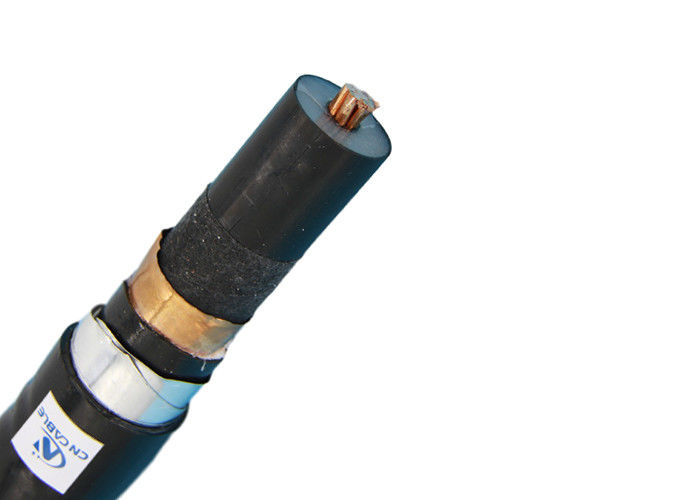

Cable construction:
A. Bare or Stranded Tinned Cu Conductor
B. Semi-conductive Layer
C. XLPE insulation
D. Semi-conductive Layer
E. Copper tape shielding
F. PVC jacket
Packing Material:Coil, Box, Pallet, Drum
|
Section Area Nominal (mm2) |
Insulation thickness nominal (mm) | Shielding |
Copper Tape Thickness (mm) |
Outer sheath |
Outer Diameter Approx. (mm) |
Weight
(kg/km) |
| 1 x 6 | 2.2 | Copper Tape | 0.10 | XLPE | 13.8 | 263 |
| 1 x 6 | 2.2 | Copper Tape | 0.10 | PVC | 13.8 | 278 |
| 1 x 6 | 2.2 | Copper Tape | 0.10 | PE | 13.8 | 263 |
| 1 x 8 AWG | 2.2 | Copper Tape | 0.10 | XLPE | 14.2 | 285 |
| 1 x 8 AWG | 2.2 | Copper Tape | 0.10 | PVC | 14.2 | 315 |
| 1 x 8 AWG | 2.2 | Copper Tape | 0.10 | PE | 14.2 | 285 |
