Contact Person : Andrea
Phone Number : 0086-371-60547601
whatsapp : +8613598873045
| Minimum Order Quantity : | 1000meters | Price : | USD 3-50/m |
|---|---|---|---|
| Packaging Details : | wooden drum. iron-wooden drum | Delivery Time : | 20 days |
| Payment Terms : | L/C, T/T |
| Place of Origin: | Henan | Brand Name: | CN CABLE |
|---|---|---|---|
| Certification: | IEC | Model Number: | MV CABLE |
|
Detail Information |
|||
| Conductor: | Copper Conductor | Insulation: | XLPE |
|---|---|---|---|
| Armour: | Aluminum Tape | Size: | 240mm |
| Application: | Underground Cable | Core: | Single Core |
| Highlight: | 240mm MV Power Cable,24KV MV Power Cable |
||
Product Description

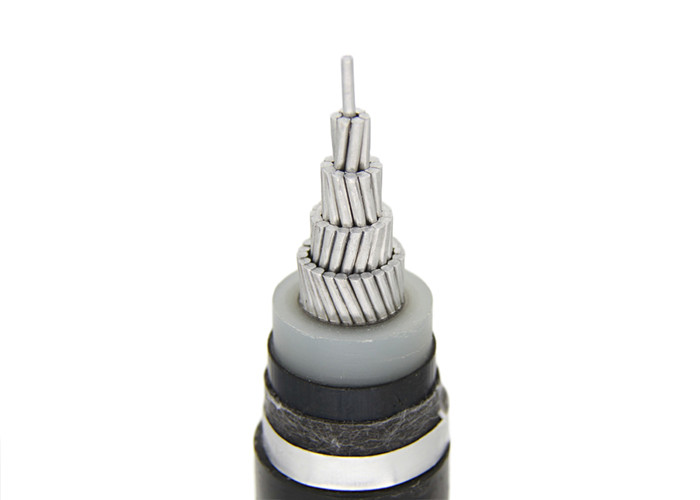

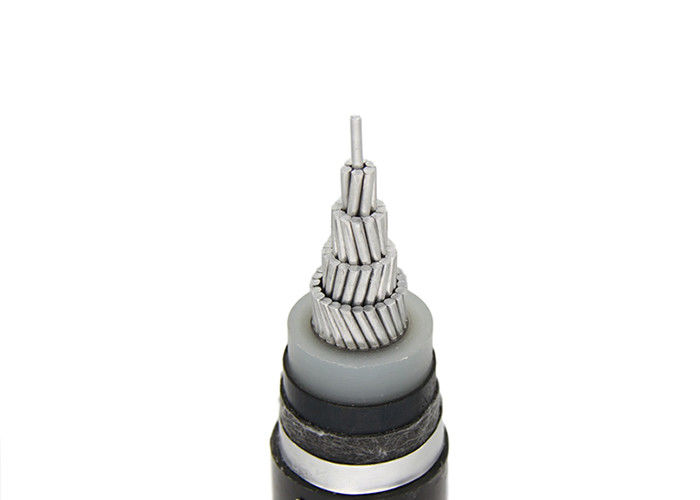

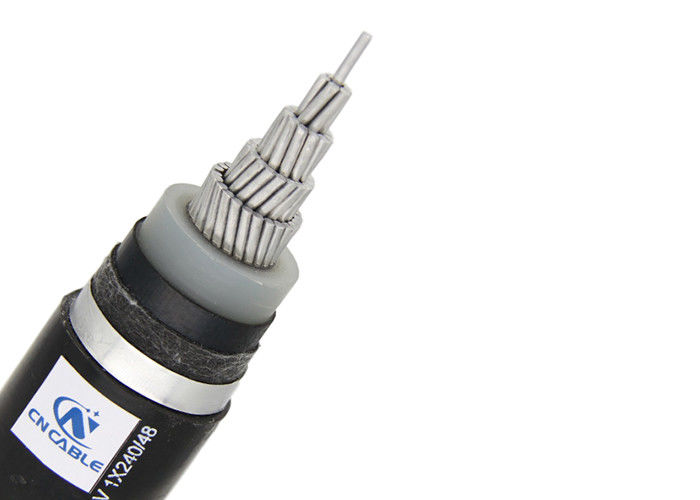

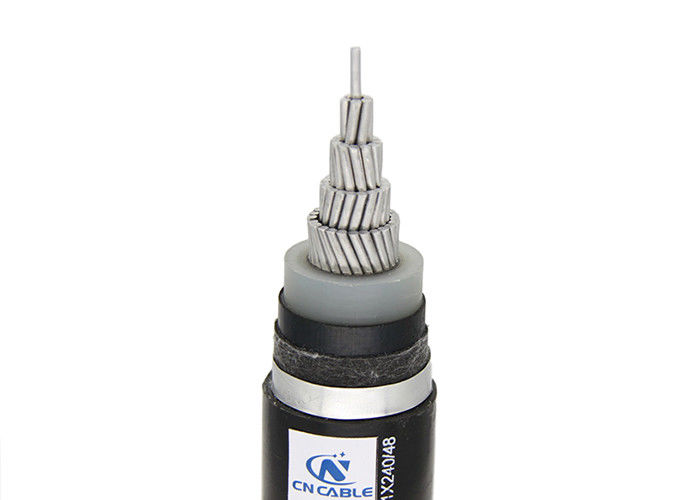

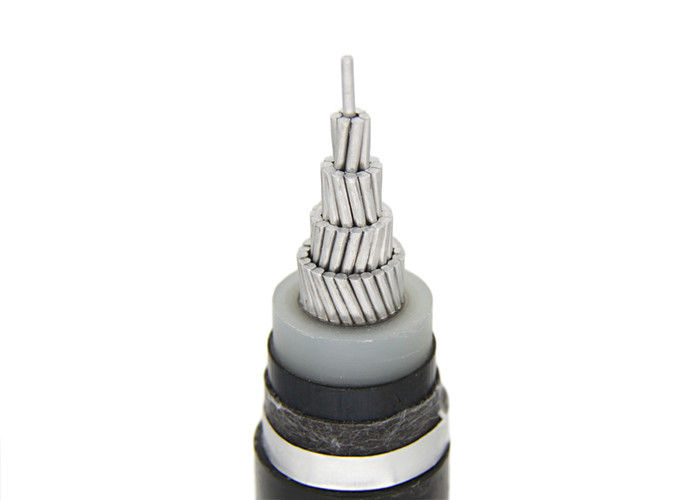

24KV (12/20KV) 240mm2 Single Core Aluminum Tape Armoured Underground Aluminum Cable
APPLICATION:The product is used in power transmission and distribution line at Voltage Up to 46KV. It does not only have excellent electric, mechanical properties, but also has powerful resistance against chemical corrosion, heat aging and environmental stress.
CONSTRUCTION
| Conductor | Aluminum Conductor |
| Insulation | XLPE (Cross-Linked Polyethylene) |
| Armor | Aluminum Tape |
| Sheath | MDPE (Medium Density Polyethylene)/PVC/XLPE |
| Conductor Size | 240mm2 |
Advantage:
1. Rich production experience.
2. Strict quality control procedures
3. Product testing
4. Quality assurance and after-sales
We can produce according to the required standard.
Why is CN CABLE?
1. Factory price
2. Customized cable
3. Quality assurance
4. Project experience
| 24KV (12/20KV) Single Core 240mm2 Aluminum Underground Cable | ||||
| Size | Insulation thickness | Outer Sheath Thickness | Approx. Cable Dia. | Approx. Cable Weight |
| mm2 | mm | mm | mm | kg/km |
| 150 | 5.5 | 2 | 33.2 | 1107 |
| 185 | 5.5 | 2 | 35 | 1253 |
| 240 | 5.5 | 2.1 | 37.6 | 1486 |
| 300 | 5.5 | 2.2 | 40 | 1728 |
